16bar Turbo Centrifugal Air Compressor Manufacturers

Description

Technical Data

More Details

Description

Quick Details

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other

Showroom Location:: Philippines, Mexico, Russia

Condition:: New

Type:: CENTRIFUGAL

Configuration:: Stationary

Power Source:: AC POWER

Lubrication Style:: Lubricated

Mute:: Yes

Place of Origin:: Shanghai, China

Brand Name:: Sollant

Model Number:: SLT1500

Voltage:: Customers' Requirements

Dimension(L*W*H):: 4200*2150*2350

Weight:: 12000

Warranty:: 18 months

Working Pressure:: 16bar

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: New Product 2021

Warranty of core components:: 18 months

Core Components:: PLC, Engine, Gear, Pump, Bearing

Gas Type:: Air

After Warranty Service:: Video technical support

Local Service Location:: Philippines, Mexico, Russia

After-sales Service Provided:: Online support

Certification:: CE/ISO

Supply Ability: 100 Set/Sets per Month

Packaging & Delivery

Packaging Details

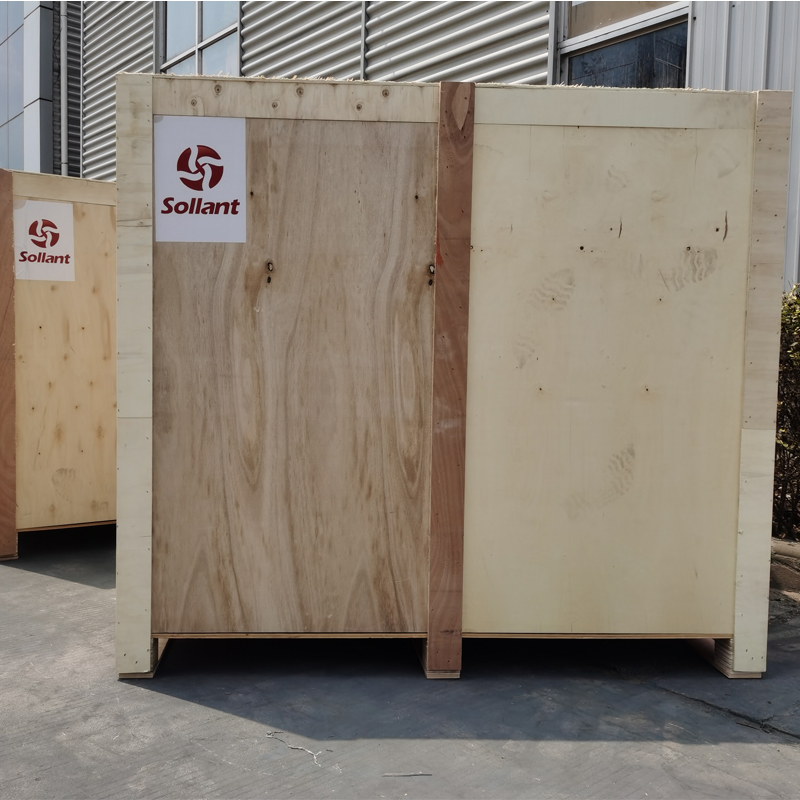

Wooden Package

Port

Qingdao/Shanghai

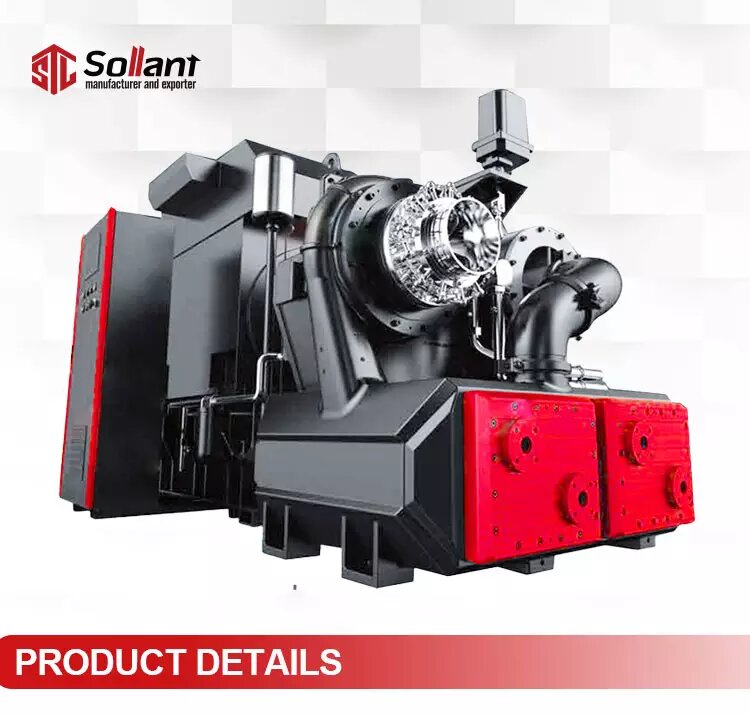

Picture Example:

Product Overview

The centrifugal air compressor working stably and reliably when the air load is stable.The reason why centrifugal compressors applications are extensive because it has large air volume, simple and compact structure, lightweight. In the chemical process, it can achieve an absolutely oil-free compression process for the chemical medium.

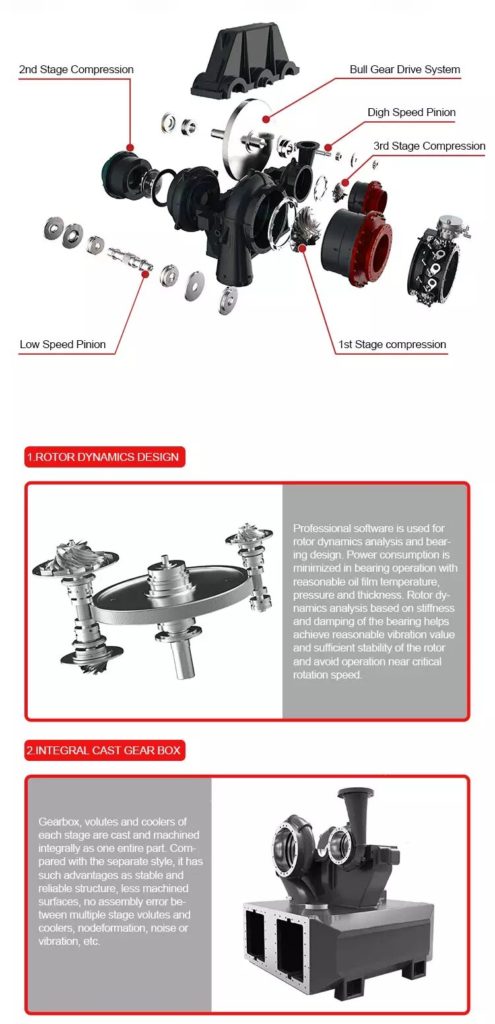

The integrated casting technology can realize the integrated casting of gearbox, multi-stage volute, cooler, and oil circuit system, ensuring compact structure, less machined surface, cast iron has the characteristics of absorbing noise and vibration, No leakage can ensure long-term stable and reliable operation of the unit after the unit is assembled and put into use.

Sollant centrifugal compressor has an excellent structural design to provide continuous, stable, oil-free, and high-quality compressed air within minimum maintenance. Its high efficiency can fully meet the need of various processes and air systems in factories.

Technical Data

Model	Pressure (barg)	Flow range (m3/min)	Motor Power (kw)	Dimensions (mm)	Weight (kg)
SLT300	0.6-9	24-48	132-263	275015001820	3800
SLT600	0.6-12	45-82	248-450	328018502200	6300
SLT900	0.6-12	76-122	400-640	380020002250	8160
SLT1200	0.6-12	118-150	630-800	420021502350	11500
SLT1500	0.6-16	118-228	760-1300	420024502350	12000
SLT2000	0.6-16	186-310	980-1600	460022002500	17200
SLT3000	0.6-16	268-438	1380-2250	530023002970	21500
SLT4000	0.6-25	347-550	1800-2850	600045003500	40000
SLT6500	0.6-25	530-920	2660-4540	850042004200	45000
SLT10000	0.6-30	830-1660	4060-7950	1200050005300	65000
SLT20000	0.6-30	1780-3000	8980-15130	1500062006000	80000

More Details

Sollant is a comprehensive screw air compressor manufacturer that engaged in R & D, design, production and sales. It has a plant of 10,000 square meters, including a large production workshop, a comprehensive first-class exhibition hall and a testing laboratory.

Sollant has excellent mechanical engineering designers, an experienced staff team and a professional management team. The production concept focuses on energy-saving and is committed to perfecting and improving the technological process in order to get the core technology of super frequency energy-saving, achieving the characteristics of mute, durability, power saving and safety.

The company has 9 series of products with multiple models. Including Fixed speed air compressor, PM VSD air compressor, PM VSD two-stage air compressor, 4-in-1 air compressor, Diesel portable screw air compressor, Electric portable screw air compressor, Air dryer, Adsorption machine and the matching spare parts. Sollant adheres to the business philosophy of cooperation and mutual benefit to provide a one-stop service for every customer!

Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.

Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China

Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.

Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.

Q5: Terms of payment?
A5: T/T and L/C at sight.

Q6: What is the MOQ?
A6: 1 PC.

Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.

Q8: Can you accept color customization?
A8: Yes we can.

Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.

Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
